CBSE Class 12 Physics Chapter 4 Competency-Based Questions

Question 1: A current‐carrying coil C1 is paired with another coil. An emf ε is induced in coil C2 when the current through C1 drops to zero from a non‐zero value within 1 s.

If the coil C1 is paired with C3, an emf 0.7ε is induced in it, for the same rate of

drop in the current through C1 as earlier.

What is the ratio of mutual inductance M12 (for the pair of coils C1 and C2) to

that of mutual inductance M13 (for the pair of coils C1 and C3)?

1. 0.7
2. 1
3. 1.42
4. 7

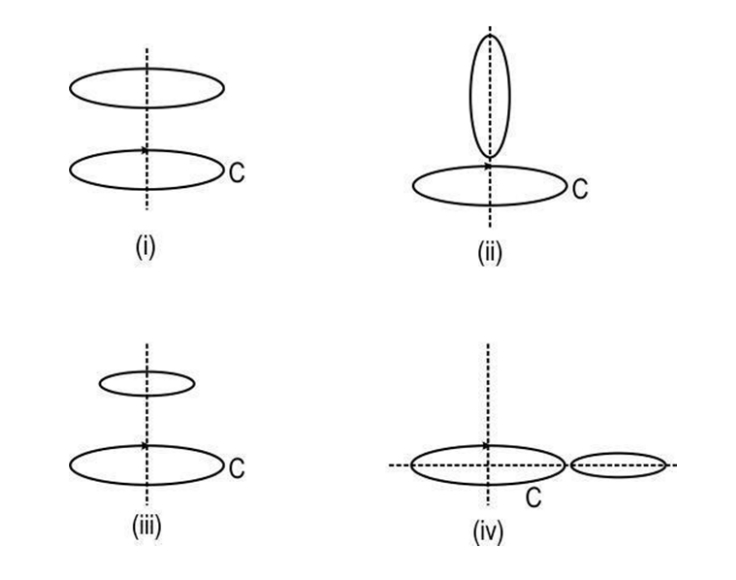

Question 2: Coil C carries a steady current. A second coil is placed in close proximity to coil  C in different configurations as shown.

Which  of  the  following  options  represents  the  correct  order  of  the  mutual  inductance values for the pair of coils in given configurations?

1. (i) > (iii) > (iv) > (ii)
2. (iv) > (iii) > (i) > (ii)
3. (ii) > (iv) > (iii) > (i)
4. (iii) > (i) > (ii) > (iv)

Question 3:  A long solenoid S has length l1, area of cross‐section A and number of turns N1.  A coil C of shorter length l2, number of turns N2 but same area of cross‐section  is wound over solenoid S. If a current I flows through the coil C, then which of  the following represents the flux linked with the solenoid S?

Question 4:  There is a pair of concentric and coplanar conducting loops of radii R1 and R2 such that R2 = 0.01 R1. To  which  of  the  following  is  the  mutual  inductance  M  for  this  pair  directly proportional?

1. 1/R₁²
2. R₁²
3. 1/R₁
4. R₁

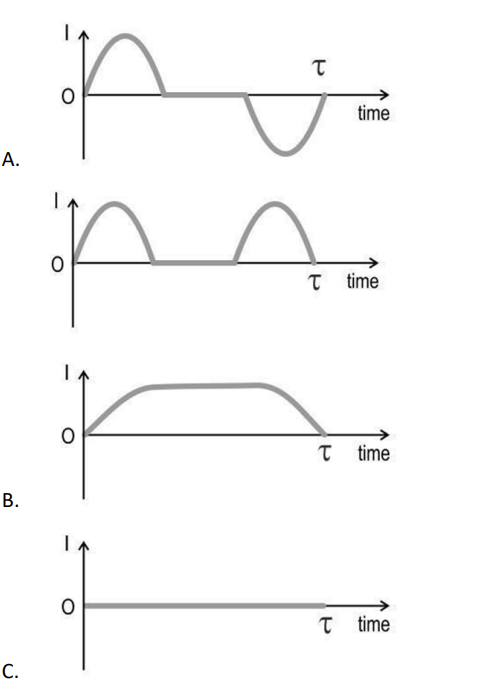

Question 5:  A small conducting metal ring falls vertically down with its plane parallel to y‐z  plane. During the fall, the ring crosses a small region of the uniform magnetic  field directed along the x‐axis between the times t=0 and t = τ seconds.  Which of the following  graphs represent the variation of current induced in the  ring during the fall?

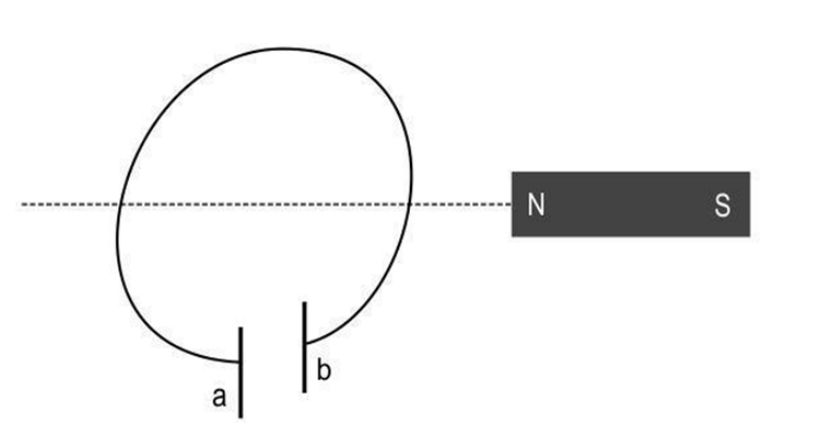

Question 6: A capacitor is short‐circuited as shown.

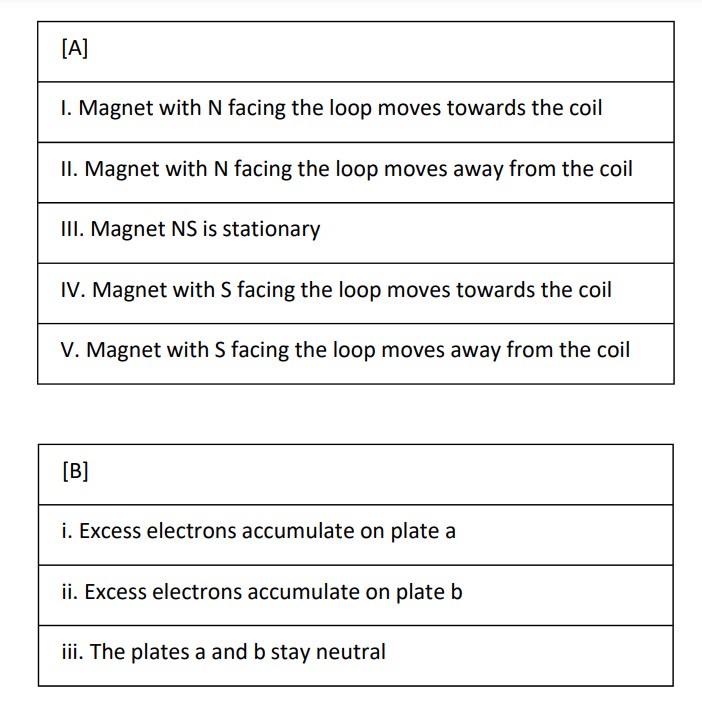

Match the possible motions listed in [A] of the bar magnet relative to the  loop with the suitable responses listed in [B] due to the induced current,  if any.

1. [I ‐ i] , [II ‐ ii ], [III ‐ iii], [IV ‐ i ], [V ‐ ii]
2. [I ‐ iii] , [II ‐ ii], [III – i], [IV – ii ], [V – i]
3. [I ‐ii] , [II ‐ i], [III ‐ iii], [IV ‐ i], [V ‐ii]
4. [I ‐ i] , [II ‐ ii], [III ‐ iii], [IV ‐ ii], [V ‐ i]

Question 7:  A square loop of a single turn is placed with its plane perpendicular to a uniform  magnetic field. The magnetic flux through the square loop is 0.002 Wb. The square loop is now reshaped into a circular loop. What is the flux (in Wb) through the circular loop?

1. π/4
2. 0.002
3. 0.008/π
4. 0.0005π

Question 8: If  Pav  represents  average  power  dissipated  and  iav  is  the  average  current  through a resistor over one cycle of the input sinusoidal voltage, which of the following statements is correct for an ac circuit with resistor only?

1. Pav = 0 & iav > 0
2. Pav > 0 & iav = 0
3. Pav > 0 & iav > 0
4. Pav = 0 & iav = 0

Question 9: An LCR series circuit is connected to an ac supply of ω = 100 rad/s. Given the values as R = 100‐ohm, L = 500 mH, C = 5 μF, study  the  following statements carefully.

I. The given circuit (LCR) is dominantly capacitive

II. The instantaneous current in the circuit leads Vmax.

III. If w greater than 200√10 rad/s, the circuit becomes dominantly inductive

IV. The LCR circuit can be made capacitive or inductive by simply changing the angular frequency of the input ac supply, keeping the voltage Vmax constant. Identify the correct option.

1. Only statement IV is correct
2. Only statements I and II are correct
3. Only statements I and III are correct
4. All statements are correct

Question 10:  In an ac circuit containing a resistor R, the power dissipated is P1. If a capacitor C is added to the above circuit, the power dissipated through the resistor changes to P2. If  an  inductor  L  replaces  the  capacitor  C,  the  power  dissipated  through  the resistor changes to P3. If  the  capacitive  reactance  offered  by  the  capacitor  equals  the  inductive reactance offered by the inductor, then which of the following represents the correct relation between P1, P2 and P3?

1. P1 = P2 = P3
2. P3 > P1 > P2
3. P1< [P2 = P3]
4. P1 > [P2=P3]

🡻

🡻

🡻

To access all the practice question of Physics Chapter 4 Electromagnetic Induction and Alternating Current, the complete FREE PDFs are attached here. Click on the 'Download PDF' to get the PDF.
